A thermocouple is one of the most widely used temperature sensors in industrial applications. However, after long-term operation under high temperature, vibration, corrosion, or mechanical stress, thermocouples may fail and cause inaccurate temperature readings.
This article introduces several practical methods to quickly check whether a thermocouple is working properly in the field.

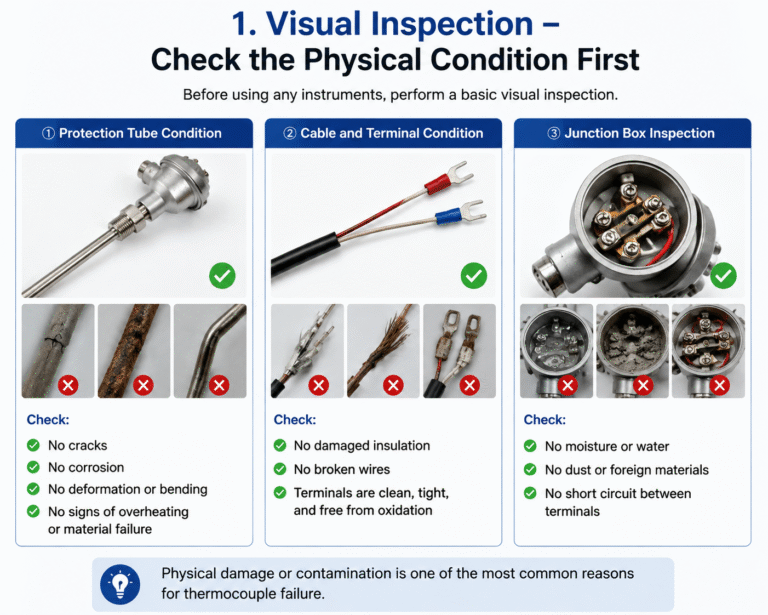

1. Visual Inspection – Check the Physical Condition First
Before using any instruments, perform a basic visual inspection.
Check the following points:
① Protection Tube Condition
- No cracks, corrosion, deformation, or mechanical damage
- No signs of overheating or material failure
② Cable and Terminal Condition
- No damaged insulation or broken wires
- Terminals should be clean, tight, and free from oxidation
③ Junction Box Inspection
- No moisture, dust, or foreign materials inside
- No short circuit between terminals
Physical damage is one of the most common reasons for thermocouple failure.
2. Check Thermocouple Continuity with a Multimeter
Set the multimeter to resistance (Ω) mode and measure the resistance between the two thermocouple wires.
Normal condition:
- The circuit should be continuous
- Resistance should be stable and within a reasonable range depending on thermocouple type, wire diameter, and cable length
Fault conditions:
Infinite resistance (OL):
- Indicates an open circuit
- Possible causes:
- Broken thermocouple wire
- Burned-out measuring junction
- Poor internal connection
Unstable resistance:
- Possible loose connection or internal damage
Note: The resistance value of a thermocouple is not a fixed standard like an RTD sensor. The continuity and stability of the circuit are more important than the exact resistance value.
3. Check Insulation Resistance to Ground
Poor insulation can cause temperature errors, unstable signals, or incorrect readings.
Testing method:
- Connect one multimeter probe to the thermocouple protection tube (ground)
- Connect the other probe to each signal wire
For industrial applications, an insulation resistance tester (megohmmeter) is recommended.
Results:
Good insulation:
- High insulation resistance value
Poor insulation:
- Low resistance between wire and metal sheath
- Possible causes:
- Moisture penetration
- Damaged insulation
- Aging of the sensor
4. Check Thermocouple Output Signal (mV Test)
A thermocouple generates a small voltage signal according to temperature difference.
Quick field test:
- Set the multimeter to DC mV range
- Connect the probes to the thermocouple wires
- Heat the measuring tip slowly using a suitable heat source
Normal thermocouple:
- The mV signal increases as temperature rises
- The signal decreases when the sensor cools down
Faulty thermocouple:
- No voltage output
- Unstable signal
- No response to temperature changes
For example, a K-type thermocouple generates approximately 41 μV/℃, and the output voltage increases proportionally with temperature.
5. Check Polarity and Wiring Connection
Sometimes the thermocouple itself is not damaged—the problem is incorrect wiring.
Check:
- Positive and negative terminals are connected correctly
- Compensation cable matches the thermocouple type
- Terminal blocks are correctly identified
Common symptom of reversed polarity:
- Temperature reading decreases when the process temperature increases
- Display shows abnormal temperature changes
6. Verify the Thermocouple on the Control System
After checking the sensor itself, verify the complete measurement loop.
Practical methods:
① Replacement Test
Replace the suspected thermocouple with a known good sensor.
- Temperature returns to normal → original thermocouple is faulty
② Compare Actual Temperature
Compare:
- Displayed temperature
- Reference thermometer value
- Process conditions
Large deviation may indicate:
- Thermocouple aging
- Incorrect installation
- Wrong configuration
- Signal wiring problems
Quick Troubleshooting Checklist
| Check Item | Normal Condition | Possible Failure |
|---|---|---|
| Appearance | No damage or corrosion | Broken tube, corrosion |
| Continuity | Circuit connected | Open circuit |
| Insulation | High resistance to ground | Leakage or moisture |
| mV Output | Voltage changes with heating | Sensor failure |
| Wiring | Correct polarity | Wrong temperature reading |
| Control System | Stable measurement | Loop or configuration problem |
Thermocouple Troubleshooting Quick Memory Guide
Check the appearance, confirm the circuit is connected;
Heat the sensor, verify the mV signal changes;
Ensure insulation and wiring are correct;
A properly tested thermocouple provides reliable temperature measurement.
This practical troubleshooting method can help engineers quickly identify whether a temperature problem comes from the thermocouple itself, wiring, installation, or the control system.
