Level indicators, used for monitoring the liquid levels in tanks and vessels, play a crucial role in industries such as petrochemical, food and pharmaceuticals, hydropower, and storage management. The accuracy of their measurements directly impacts production safety, process control, trade settlement, and inventory management. Therefore, regular calibration and testing of level indicators is essential for ensuring the continuous delivery of reliable data.
Why Calibration is Essential
Over time, the performance of level indicators may change due to various factors:
Environmental Factors: Temperature fluctuations, mechanical vibrations, and medium corrosion.
Component Aging: Natural deterioration of sensors, circuit components, and other parts.
Medium Characteristics: Changes in the density, viscosity, and dielectric constant of the medium may affect certain types of instruments’ measurements.
Failure to calibrate instruments may lead to significant consequences, such as inaccurate inventory, financial disputes, safety accidents due to overflows or emptying, and poor process control affecting product quality. Calibration ensures the verification of metrological properties and guarantees consistent, accurate measurements.
Main Calibration and Testing Methods
Depending on the working principles of level indicators (e.g., radar, ultrasonic, hydrostatic, magnetostrictive, float-based, etc.), calibration methods vary but fundamentally involve comparing the instrument’s readings against known standard values. The main methods include:
Physical Calibration (Tank Method):
This is one of the most direct, traditional, and reliable methods. It usually involves using large calibration tanks like vertical metal tanks or spherical tanks. The procedure involves adding or draining a known volume of standard liquid using a high-precision volume gauge or flow meter while comparing the level changes with the readings of the instrument being calibrated. This method is authoritative and commonly used for trade handover scenarios.Comparative Calibration:
This is one of the most widely used methods today. A “standard level gauge” (such as a laser level meter or high-precision radar level meter) with much higher accuracy than the tested instrument is installed at the same reference point. By comparing the readings of both instruments at the same time, the error of the tested instrument can be assessed. This method is efficient and suitable for online calibration.Simulated Calibration:
For hydrostatic (submersible) level gauges, a precision pressure generator (calibration instrument) is used to apply standard pressure equivalent to different liquid levels to test whether the instrument’s output or digital display is accurate. This method, conducted in a laboratory or workshop, does not require actual liquid and is quick and convenient.

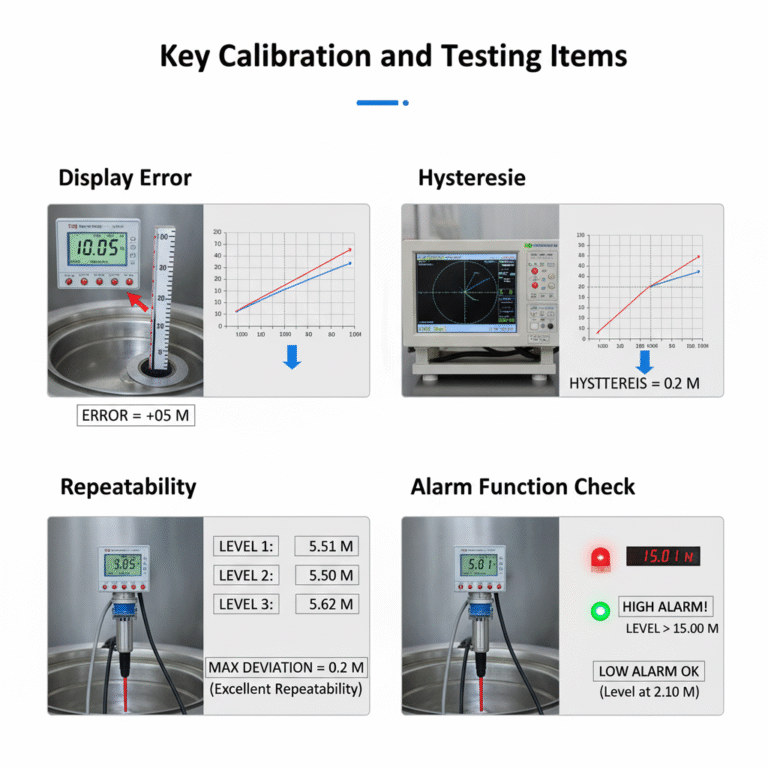

Key Calibration and Testing Items
A complete level indicator calibration typically includes the following key testing items:
Display Error: The core of calibration, which compares the instrument’s reading to the actual level.
Hysteresis: The difference in readings when the liquid is rising and falling to the same level.
Repeatability: The consistency of readings at the same level under identical conditions.
Alarm Function Check: Verifying the accuracy and reliability of high and low-level alarm points.
Calibration Cycle and Standards
The calibration cycle for level indicators should be determined based on the usage environment, medium characteristics, stability, and importance of the instrument. Typically, calibration should occur every 6 months to a year. For critical instruments involved in safety, environmental protection, or trade settlement, the cycle should be shorter.
The entire calibration process must strictly adhere to national metrological standards, such as JJG 971-2019 “Level Gauge Calibration Standards”, or other relevant calibration regulations to ensure standardized operations and traceable results.
Level indicator calibration is not just about “adjusting” the instrument; it is a rigorous scientific verification activity. By performing systematic testing and data comparison, it provides a “health check report” for the instrument’s measurement performance. Only through regular and standardized calibration can the “lifeline” of level measurement data be safeguarded, ensuring safety in production, precision management, and economic efficiency.
