AMS Trex™ Device Communicator - Just Measure it

AMS Trex™ Device Communicator

  • Commission and validate devices faster
  • Automatically synchronize field changes with AMS Device Manager
  • Quickly fix issues in the field with advanced device diagnostics
  • Configure and test valves inline
  • Improve efficiency with a modern,intuitive user interface
  • Intrinsically safe; usable anywhere you need to go

Introduction

The AMS Trex Device Communicator expands the long line of Emerson handheld devices while adding new capabilities that adapt it to consumer expectations for mobile device functionality.

Technicians armed with a Trex communicator won’t waste time bringing devices back to the shop for analysis or reconfiguration. AMS Trex is delivered with a complete, pre-installed DD library for over 2,000 HART and FOUNDATION Fieldbus devices so users can easily diagnose device problems in the field. Simple issues can be addressed on the spot, avoiding unnecessary, and potentially destructive,

invasive physical investigation of the problem.

Technicians need powerful and portable diagnostic tools so they can identify and troubleshoot device issues to minimize process upsets. With a Trex communicator in hand, you can properly diagnose device issues in the field. With the right handheld, maintenance teams will experience significant savings in work hours and peace of mind knowing that problems will be fixed quickly and properly the first time.

Once changes are made in the field, AMS Trex will automatically synchronize the information with the AMS Device Manager

database via Wi-Fi or USB connection.

Rugged and Reliable

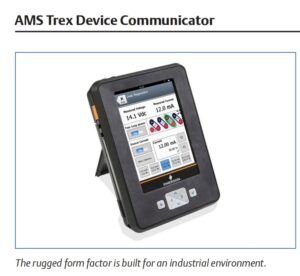

For a communicator to be useful in the field, it must be built to last and ready for anything. The Trex communicator is designed to withstand the harsh conditions in and around manufacturing facilities. The rugged device is easy to hold, yet designed to take the bumps and drops that come from normal use in the plant. In addition, the Trex communicator is protected against moisture and extreme temperatures, allowing you to work regardless of environmental conditions.

The sturdy exterior is designed in accordance with Intrinsic Safety standards to limit the buildup of static electrical energy.

Unlike consumer-grade mobile devices, the Trex communicator will withstand the abuse of a harsh field environment.

Designed based on user feedback and with field use in mind, the carrying case features an access window that allows you to use the communicator and contains pockets large enough to carry the charger, extra lead sets, or other tools you may need in the field.





Adjustable Display

The Trex communicator features a 5.7” resistive touchscreen

display for easy use with bulky work gloves. The adjustable

backlit screen can be easily changed to save power or adapt

to dark environments or bright sunlight, ensuring a crisp display

that can always be read – no matter the external conditions.

An App for That

The Trex communicator includes Upgrade Studio, a PC

application to help keep the Trex unit up-to-date with

new software and apps.

With Upgrade Studio, add critical diagnostic tools to

your toolkit and push them out to any number of Trex

communicators. With multiple apps available and many

more in development, Upgrade Studio will make the

Trex communicator your go-anywhere, do-anything device:

Field Communicator – The Field Communicator app delivers

a wide range of options for configuring and troubleshooting

HART and FOUNDATION Fieldbus devices.

Loop Diagnostics – With the Loop Diagnostic app, you

can power the loop in the field and also perform loop

troubleshooting and checkouts. The app helps with loop

characteristic validation and lets you isolate and troubleshoot

wiring issues.

Fieldbus Diagnostics – The Fieldbus Diagnostics app gives

you the necessary toolset for troubleshooting and validating

Foundation Fieldbus segments.

WirelessHART Provisioning – The WirelessHART Provisioning

app allows you to provision wireless networks in less time,

with less chance of error and in a more secure fashion.

The app can configure hundreds of devices with a push

of a button, improving accuracy and allowing you to provision

an entire network up to 6x faster.

Radar Master – The Radar Master app enables you to ensure

the measurement and configuration accuracy of your

Rosemount radar level transmitters by bringing the power

of Radar Master software to the field. Use dynamic graphics

to verify configurations while protecting the safety of your

personnel and assets.

ValveLink Mobile – With Valvelink Mobile, you can analyze

and review valve assembly condition and performance without

affecting the process. Configuration and troubleshooting

of digital valve controllers has never been more efficient.

Calculator – The Calculator app for AMS Trex includes a

simple calculator, conversion calculator for base conversions,

loop convertor/Ohm’s law calculator, and unit converter for

engineering units.

Trex Help – The Trex Help app offers a searchable help guide,

putting key information on operation and troubleshooting

at your fingertips.

PDF Viewer – Transfer PDF files to AMS Trex to easily access

manuals, work processes, notes, and any other PDFs in the field.

Designed for Use

Designed for comfortable, one-handed, all-day operation

in the field, the Trex communicator is packaged in an evenly

balanced form factor with a rugged hand strap so you can easily

hold it, even when working in tight spaces. It comes standard

with 32 GB of application memory, providing plenty of space

to customize it with the apps of your choice. With built-in

USB and Wi-Fi connectivity, you can move data to and from

the communicator using the connectivity option that is most

convenient. With numerous communication options,

your communicator has never been more connected.

The communicator’s robust lithium-ion power module will keep

it running for hours, well over a full shift, even when it is being

used to power other devices in the field.

AMS Trex™ Device Communicator
