In discussions about plant safety, you might hear terms like “alarms, interlocks, and safety valves.” However, true safety assessment goes beyond simply asking, “Do we have these systems?” It involves answering three crucial questions:
What potential issues could occur? (Scenario Identification)
Is the risk low enough? (Risk Assessment)
If not, how reliable do the protection measures need to be? (Reliability Requirements)

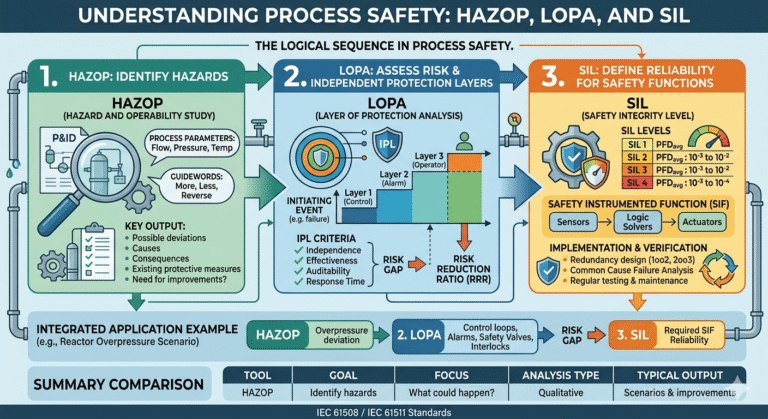

In the field of process safety, three tools are often mentioned together: HAZOP, LOPA, and SIL. These terms are often confused, but if we follow their logical sequence, we can understand their roles as follows:
HAZOP: Identifies potential accident scenarios.
LOPA: Assesses and quantifies the risk of key scenarios.
SIL: Defines the reliability requirements for protective measures.
HAZOP Analysis
HAZOP (Hazard and Operability Study) is a discussion-based method used to systematically identify process deviations that could lead to hazards or operational problems. It does not assume that accidents will happen, but asks: What if process parameters deviate from the design intent?
HAZOP is typically performed using Process Flow Diagrams (P&IDs) and incorporates the following:
Process parameters (flow, pressure, temperature, level, composition, etc.)
Guidewords (more, less, none, reverse, early, delayed, etc.)
Through structured discussions, the following can be identified:
Possible deviations
Causes of deviations
Consequences of deviations
Existing protective measures
Whether improvements are needed
HAZOP is often the starting point of process safety work. While it brings risks to the forefront, it does not answer whether existing protective measures are sufficient. This question is addressed by LOPA.
LOPA Analysis
LOPA (Layer of Protection Analysis) transforms vague statements like “We have many protection layers” into clear, auditable judgments. It uses a semi-quantitative approach to evaluate the risk of critical accident scenarios.
LOPA starts with an initiating event and assesses whether the remaining risk, after multiple layers of protection, is acceptable. If the risk is still too high, the analysis identifies how much additional risk reduction is needed.
A typical accident scenario in LOPA is broken into four parts:
Initiating event (e.g., equipment failure, operator error, blockage, leakage)
Independent Protection Layers (IPLs)
Reliability of each protection layer (can it act when needed?)
Remaining risk (compared with the company’s risk tolerance)
The key focus in LOPA is on IPLs. To qualify as an IPL, the protection measure must meet the following criteria:
Independence: It must not share a failure mode with the initiating event or other protection measures.
Effectiveness: It must mitigate the accident scenario.
Auditability: It must be testable, maintainable, and verifiable over time.
Response Time: It must act in time during the accident progression.
LOPA strikes a balance between clarity in quantification and engineering practicality, providing actionable conclusions, such as:
Are the current protective measures sufficient?
If not, how much risk reduction is needed?
If LOPA indicates the need for additional protection, the next question becomes: How reliable do the safety instrumented systems (SIS) need to be? This is where SIL levels come into play.
SIL Levels
SIL (Safety Integrity Level) comes from the IEC 61508 / IEC 61511 standards and essentially defines the reliability requirements for Safety Instrumented Functions (SIFs).
It answers the question: How reliable does a SIF need to be to reduce the risk to an acceptable level?
SIL is not a grade for individual components, but for the complete safety function chain (sensors, logic solvers, actuators) under specific operating conditions and demand modes. The most common mode in process industries is low-demand mode, where PFDavg (average probability of failure on demand) is used to measure reliability.
In high-demand or continuous modes, PFH (probability of failure per hour) is more commonly used. From a functional perspective, SIL is a tool that engineering safety requirements. It provides clear, quantifiable guidance for design, implementation, and verification, ensuring that safety functions can operate reliably when needed.
SIL is introduced only after LOPA confirms the need for a safety instrumented function (SIF). It does not answer the question: Is a safety function needed? Instead, it answers: How reliable must that function be?
The implementation of SIL depends on:
Architecture and redundancy design (e.g., 1oo1, 1oo2, 2oo3)
Failure probability and common cause failure analysis (diagnostic, bypass, β-factor methods, etc.)
Regular testing intervals, coverage, and maintenance strategies
Change management and functional testing throughout the entire lifecycle
These steps collectively ensure that safety functions achieve the target SIL, rather than just relying on components that are SIL certified.
Comparing HAZOP, LOPA, and SIL
Here is a comparison of the three tools:
| Dimension | HAZOP | LOPA | SIL |
|---|---|---|---|
| Main Goal | Identify hazards and deviations | Assess if risks are acceptable | Define reliability of safety functions |
| Focus | What could happen? | Is the risk low enough? | How reliable does the function need to be? |
| Analysis Type | Qualitative | Semi-Quantitative | Quantitative / Standardized |
| Typical Output | Scenarios and improvement recommendations | Risk assessment and required risk reduction | SIL level |
| Engineering Phase | Early design or retrofit | Risk assessment phase | Design and implementation phase |
Integrated Application of the Three Tools
For example, let’s consider a reactor overpressure situation that leads to a release:
HAZOP will identify potential deviations (such as high pressure/overpressure), discuss causes (e.g., outlet blockage, valve failure, exothermic reaction runaway, nitrogen seal failure), and consequences (overpressure → release/burst → release of toxic or flammable substances). It will also list existing protective measures like control loops, alarms, safety valves, and interlocks.
LOPA focuses on key scenarios, breaking down the accident chain:
Initial event → Protection layers → Remaining frequency
It evaluates which protection measures qualify as IPLs (independence, auditability, response time) and calculates the remaining risk against company standards, identifying any gaps in risk reduction.SIL will then determine the required risk reduction ratio (RRR) for the safety instrumented function (SIF) and guide its design, validation, and maintenance.
Conclusion
In real engineering projects, HAZOP, LOPA, and SIL are typically used in sequence, as needed:
HAZOP: Identifies potential hazardous scenarios.
LOPA: Assesses if the risk of key scenarios is acceptable.
SIL: Defines the reliability requirements for safety functions.
