In process automation, the terms control valve, regulating valve, and instrument manifold (instrument valves) are mentioned daily.
Although all of them are “valves,” they perform entirely different roles in a process control loop.
This article provides a clear engineering-level comparison across system architecture, industry applications, sizing considerations, reliability, and safety.

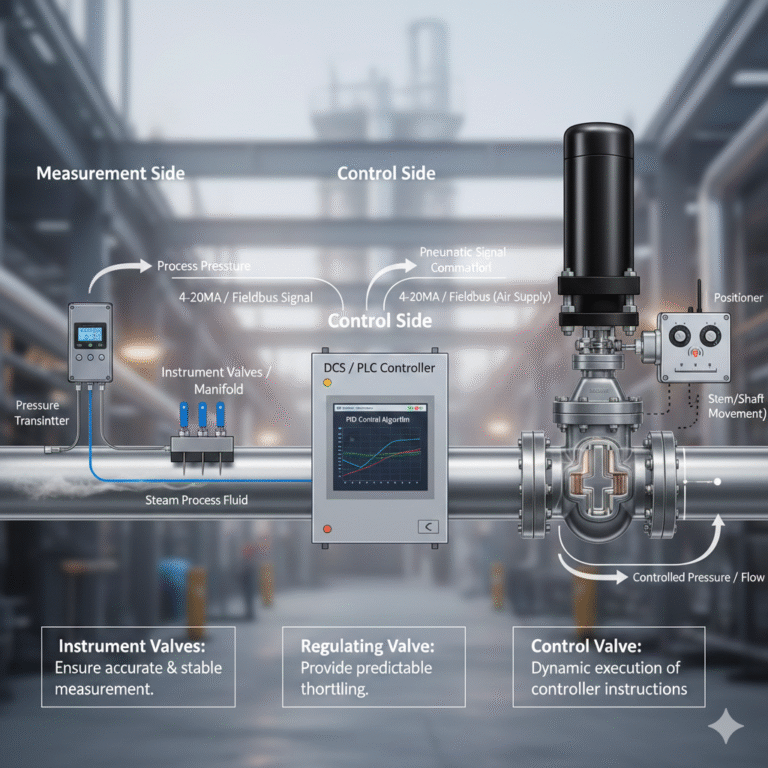

1. A Simple Control Loop Perspective
Consider a common scenario: you want to control the pressure of a steam pipeline to keep downstream equipment stable.
A complete control loop involves:
Measurement Side
Pressure transmitter
Instrument valves/manifold (needle valve, ball valve, 3-valve/5-valve manifold, impulse lines)
Control Side
DCS/PLC executing the control algorithm (PID)
Execution Side
Control valve assembly (actuator + positioner + regulating valve body)
Their functions in one sentence:
Instrument valves → Ensure the measurement is accurate and disturbance-free
Regulating valve → Provide predictable throttling characteristics
Control valve → Ensure dynamic and stable execution of controller instructions
Understanding this loop explains their true positions in a process system.

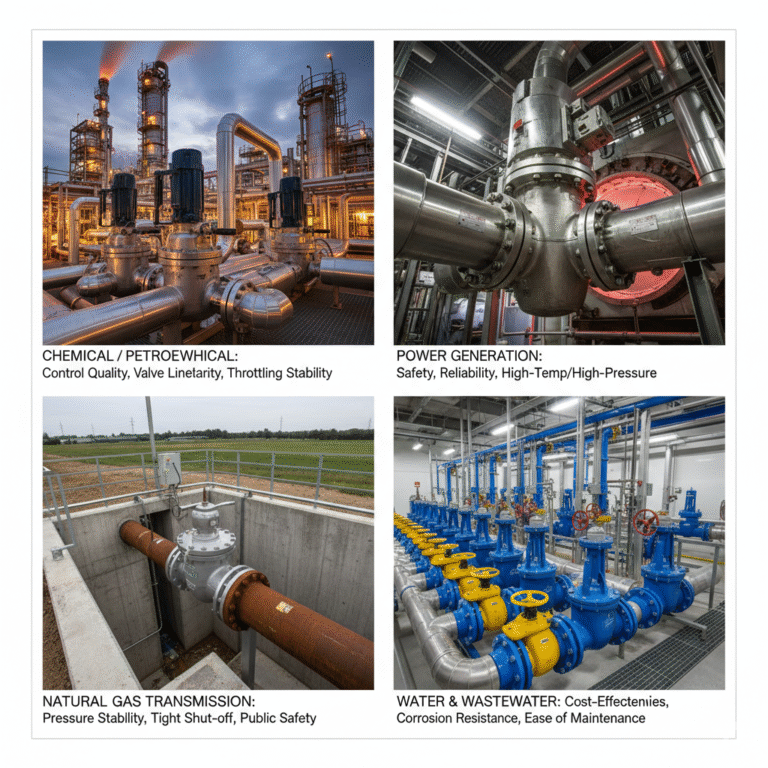

2. How Different Industries View These Three Components
Chemical / Petrochemical
Focus: control quality
Overshoot, response time
Valve linearity, dead band
Throttling stability for reactors and heat exchangers
Power Generation (especially coal-fired & supercritical units)
Focus: safety & reliability
High-temperature/high-pressure steam
Anti-cavitation, anti-erosion
Long-term stability of the control valve assembly
Natural Gas Transmission / City Gas
Focus: pressure stability & tight shut-off
A small regulator valve may affect safety at the city level.
Water & Wastewater Treatment
Focus: cost, corrosion resistance, ease of maintenance
Large quantities of valves, frequent operation.

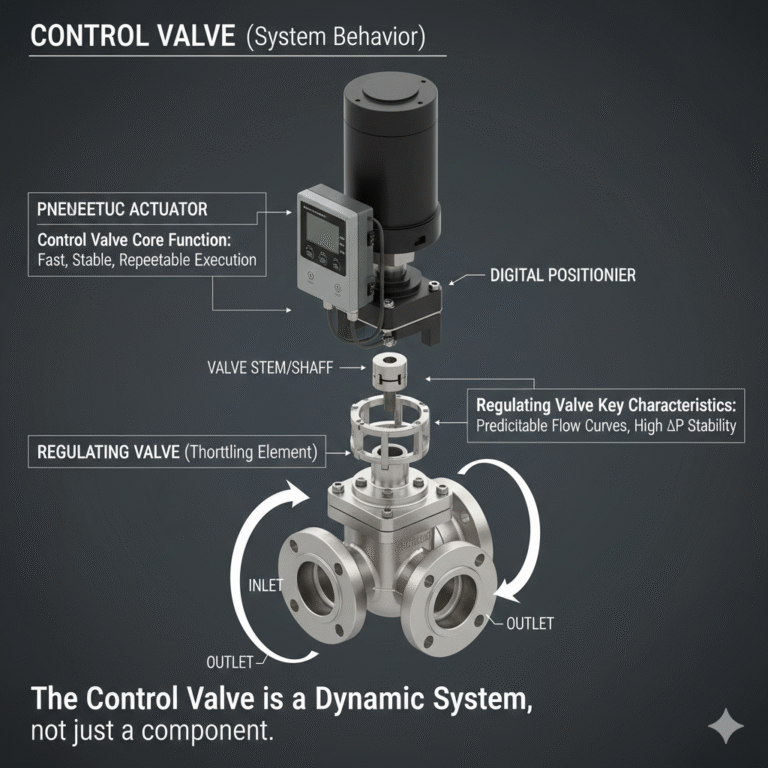

3. Control Valve: The Final Control Element
A control valve is not just a valve—it is a dynamic control device.
Signal Flow
PLC/DCS output → 4–20 mA, pulse, or fieldbus
Positioner → Converts signal into stem/shaft movement, compensating friction & nonlinearity
Actuator → Pneumatic/electric/hydraulic force
Regulating valve body → Converts displacement into changes in flow/pressure
A complete control valve assembly includes:
Valve body (throttling component)
Actuator (motion source)
Positioner (signal-to-position conversion)
Control Valve Core Function
Provide fast, stable, repeatable responses
Maintain control accuracy under disturbances (pressure fluctuation, viscosity change, etc.)
👉 A control valve is evaluated by its behavior—not its material.
It is a system, not a component.

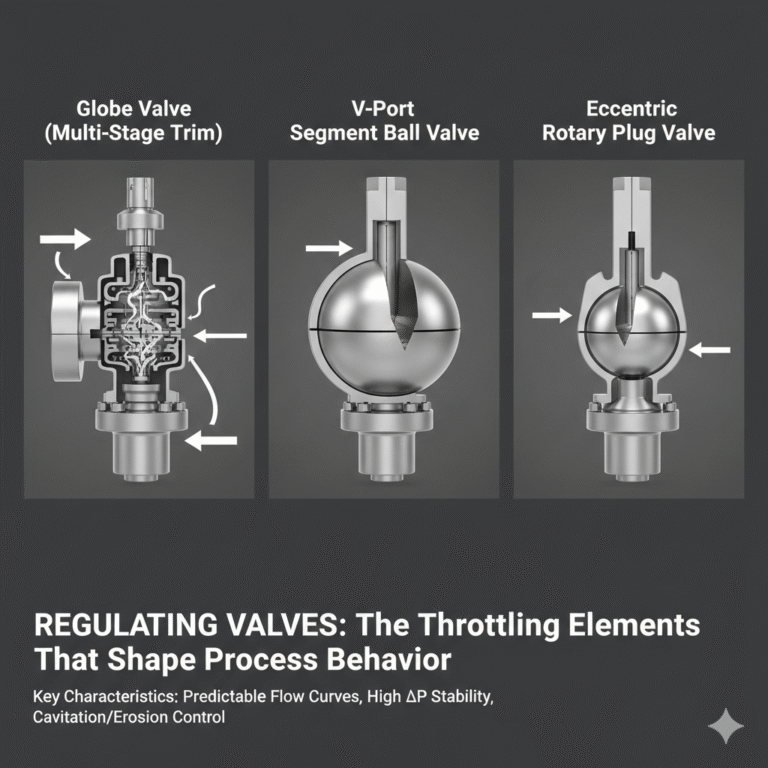

4. Regulating Valve: The Throttling Element
Many engineers confuse the regulating valve with the control valve.
In reality, the regulating valve (valve body) is the core throttling unit within the control valve assembly.
Its purpose: dissipate energy by changing flow resistance.
Key Characteristics of Regulating Valves
Provide predictable flow characteristic curves
Linear
Equal percentage
Quick-opening
Maintain stability under high pressure differentials
Manage cavitation, flashing, erosion, noise
Offer suitable energy-dissipation mechanisms
Single-stage throttling
Multi-stage (trim, drilled cage, labyrinth, etc.)
Valve Types
Globe (single-seat, double-seat, cage-guided)
Segment ball (V-port)
Eccentric rotary plug
Butterfly (high-performance)
👉 The regulating valve determines whether the control action is “controllable.”
👉 The control valve determines whether the control action is “achievable.”

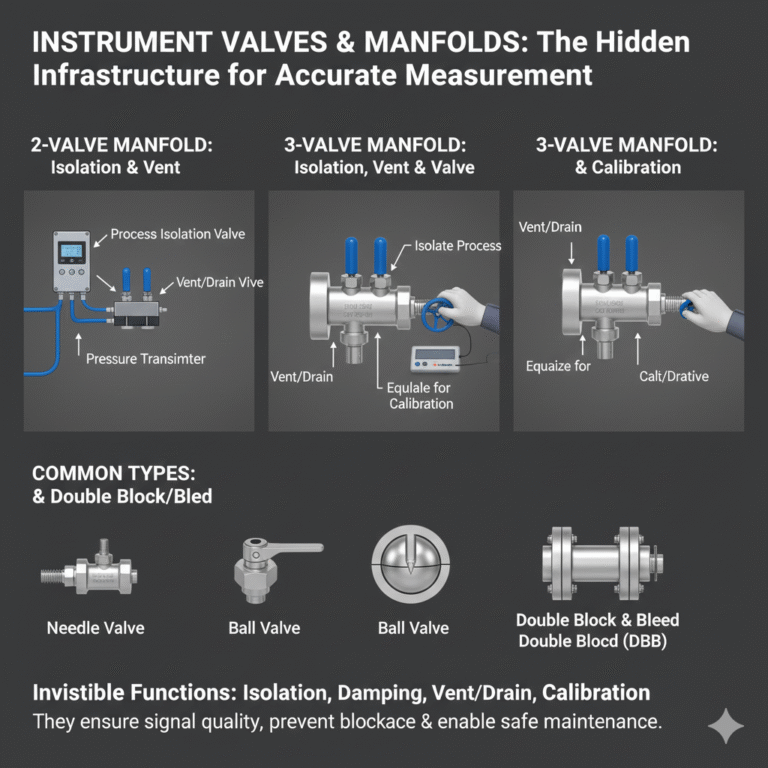

5. Instrument Valves & Manifolds: The Hidden Infrastructure for Accurate Measurement
Instrument valves do not look sophisticated, but they play a critical role in maintaining measurement integrity.
They perform four invisible functions:
Isolation – Protect the transmitter from process surges
Damping – Reduce pulsation via impulse line design
Vent / Drain – Prevent gas/air lock or liquid blockage
Calibration & Switching – Enable transmitter replacement without shutdown
For a typical 3-valve or 5-valve manifold:
Isolate the process
Vent air / drain liquid
Switch transmitter for online calibration
Why They Matter
Incorrect instrument valve selection or installation leads to:
Pressure reading drift
Impulse line blockage
Level measurement offset
Density/temperature influence
False transmitter failure alarms
In many plant incidents, 80% of measurement errors originate from small instrument valves and impulse lines, not the transmitter itself.

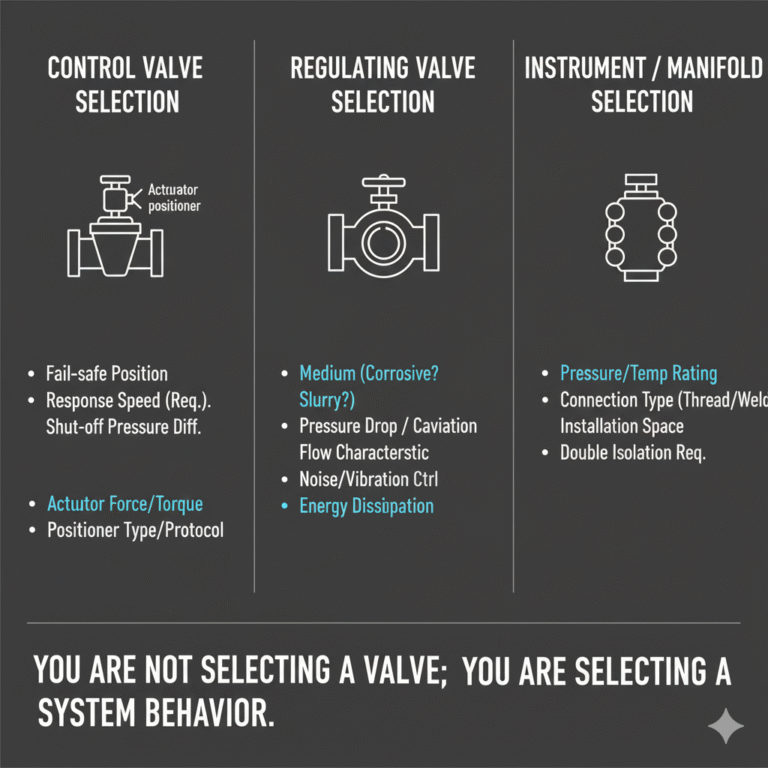

6. Selection Criteria: What Engineers Actually Look At
Control Valve Selection
Fail-safe position (fail open/close/last)
Required response speed
Shut-off pressure difference
Actuator force/torque
Positioner type & communication protocol
Regulating Valve Selection
Medium: corrosive? crystallizing? slurry?
Pressure drop & cavitation risk
Required flow characteristic
Noise/vibration control
Instrument Valve / Manifold Selection
Pressure rating / temperature rating
Connection type: threaded, welded, tube fitting
Installation space
Need for double isolation, sample conditioning, etc.
👉 You are not selecting a valve; you are selecting a system behavior.

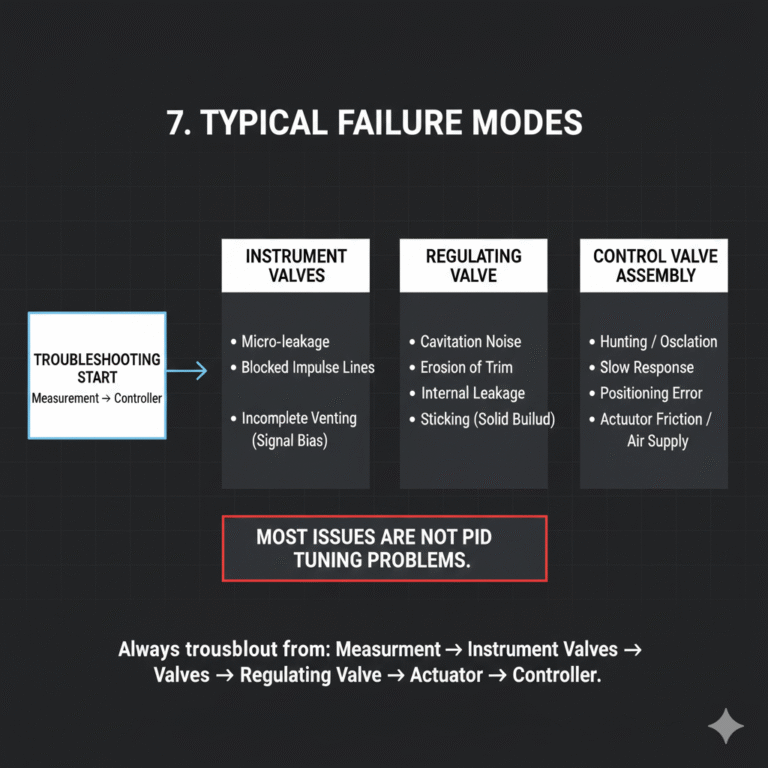

7. Typical Failure Modes
Control Valve
Hunting / oscillation
Slow response
Positioning error
Actuator friction / air supply issues
Regulating Valve
Cavitation noise
Erosion of trim
Internal leakage
Sticking due to solid build-up
Instrument Valves
Micro-leakage
Blocked impulse lines
Incomplete venting leading to signal bias
When facing poor control performance:
Always troubleshoot from: Measurement → Instrument Valves → Regulating Valve → Actuator → Controller.
Most issues are not PID tuning problems.

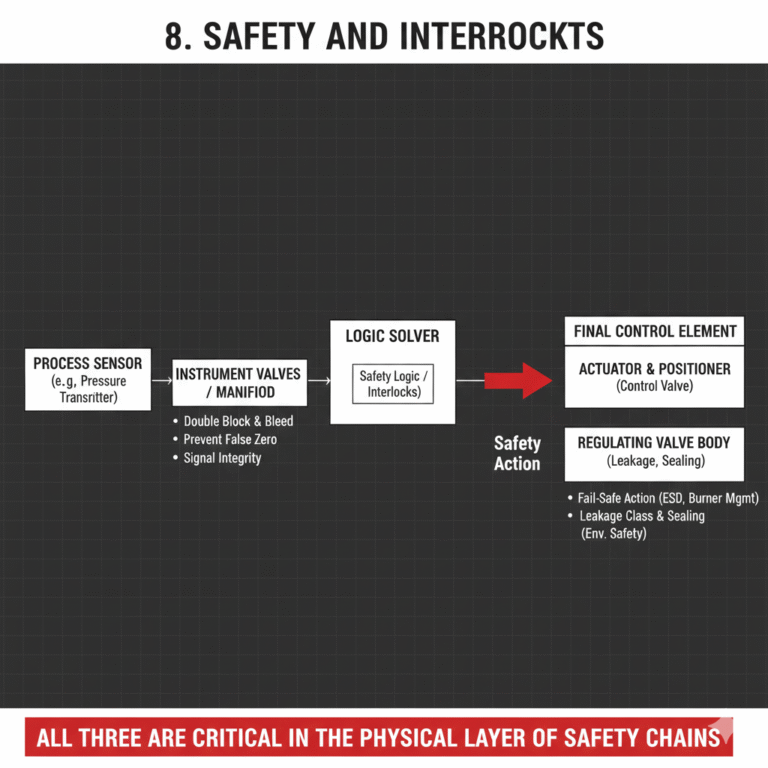

8. Safety and Interlocks
Control Valves
Often used for ESD, burner management, furnace protection
Fail-safe action on loss of air/power is critical
Regulating Valves
Leakage class & stem sealing (bellows, packing) impact environmental and personnel safety
Instrument Valves
Key elements in double block & bleed isolation
Prevent false “zero pressure” judgments during maintenance
In SIL/SIF evaluations, all three belong to the physical layer of the safety chain.
9. Final Summary
To capture their essence in true engineering language:
Control Valve
The dynamic actuator that executes the control strategy.
Regulating Valve
The throttling element that shapes the process behavior.
Instrument Valves / Manifold
The measurement infrastructure that guarantees signal quality.
Together, they determine whether a process system can be:
✔ Measured accurately
✔ Regulated predictably
✔ Controlled reliably
