Product Overview

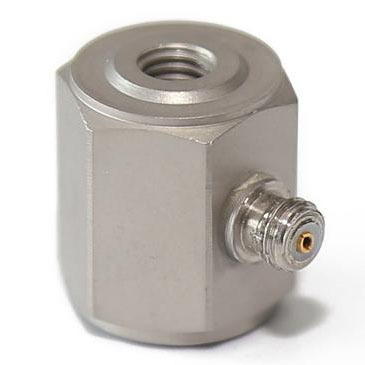

The DS2005 is a high-sensitivity piezoelectric force sensor capable of accurately measuring both tensile and compressive forces. Built with a quartz crystal sensing element, it offers ultra-fast response, high rigidity, and stable charge output across a wide frequency range. This sensor is ideal for dynamic force monitoring in high-speed, high-impact industrial and research environments.
Its through-hole mounting and symmetrical structure make it easy to integrate into mechanical assemblies, test rigs, and press systems.
Key Features
Measures both tension and compression forces
Output type: Charge output (pC)
Wide dynamic measuring range: ±0.5 kN to ±20 kN
Ultra-fast response and high natural frequency
BNC or M5 charge output connector
Excellent linearity and repeatability
Suitable for high-speed and oscillating force detection
Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | ±5 kN (customizable ±0.5–20 kN) |
| Sensitivity | ~4.0 pC/N (typical) |
| Linearity | ≤ ±1% F.S. |
| Natural Frequency | >100 kHz |
| Operating Temperature | -40°C ~ +150°C |
| Output Type | Charge output (pC) |
| Output Connector | BNC / M5 threaded |
| Installation Method | Through-hole center mount |
| Housing Material | Stainless Steel |
| Protection Level | IP64 (optional IP67) |
Applications
Dynamic tension and compression monitoring
Press-fit, stamping, and impact force detection
Ultrasonic welding and precision assembly
Fast-changing load detection in mechanical testing
Vibration & modal analysis in automotive/aerospace systems
