Abstract
Level measurement is a critical element of industrial process control, directly affecting production safety, reliability, and efficiency. Commonly used instruments include radar level transmitters, ultrasonic level meters, tuning fork level switches, magnetic level indicators, and float-type gauges. Each technology has unique installation requirements; neglecting them can cause inaccurate readings, false signals, or equipment failure. This document outlines typical installation problems and practical recommendations.

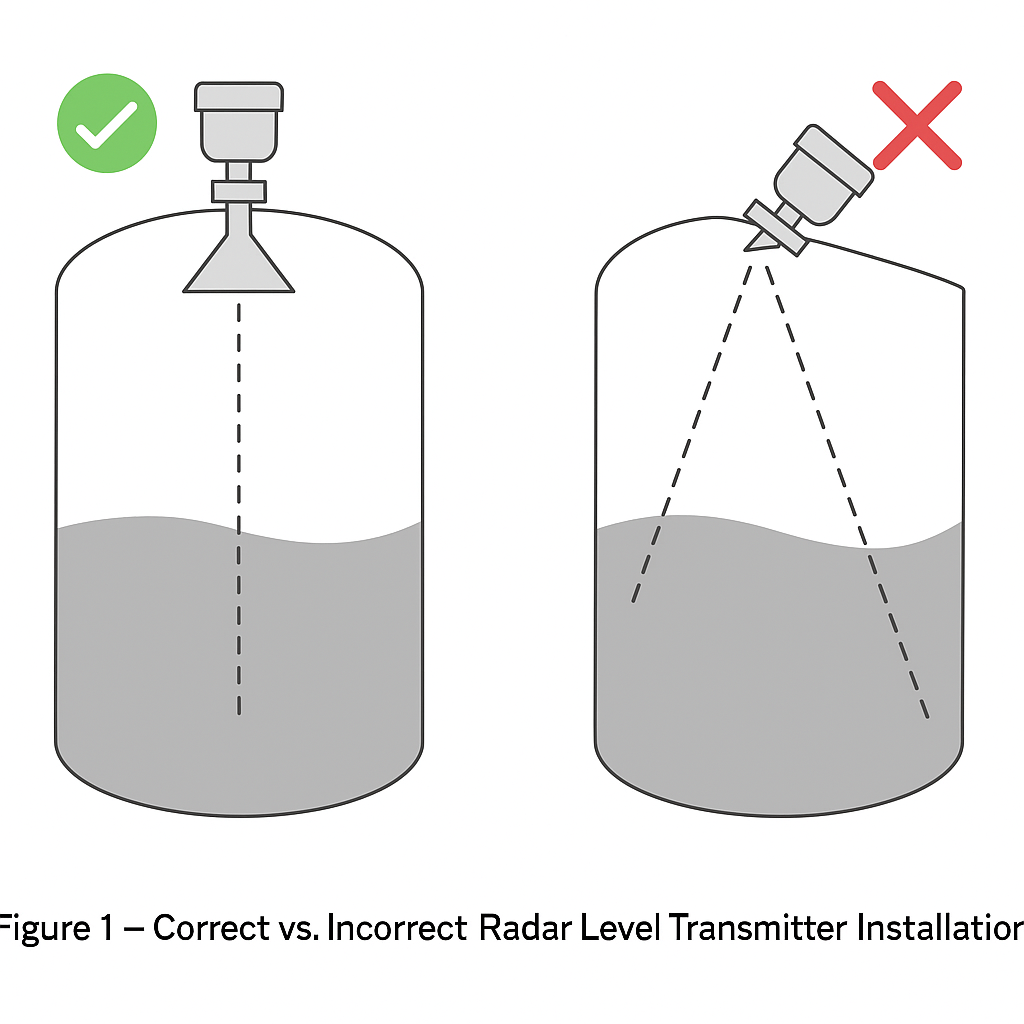

1. Radar Level Transmitter
1.1 Installation Problems
Antenna tilted instead of facing the liquid surface → causes abnormal echo reflection.
Internal structures (agitators, guide pipes, stiffeners) → generate false echoes.
Too close to the tank wall → multipath interference.
1.2 Recommendations
Install away from inlet ports and agitators.
Keep antenna perpendicular to the liquid surface with no obstructions.
For steam, dust, or sticky media → use horn antennas or air purging devices.

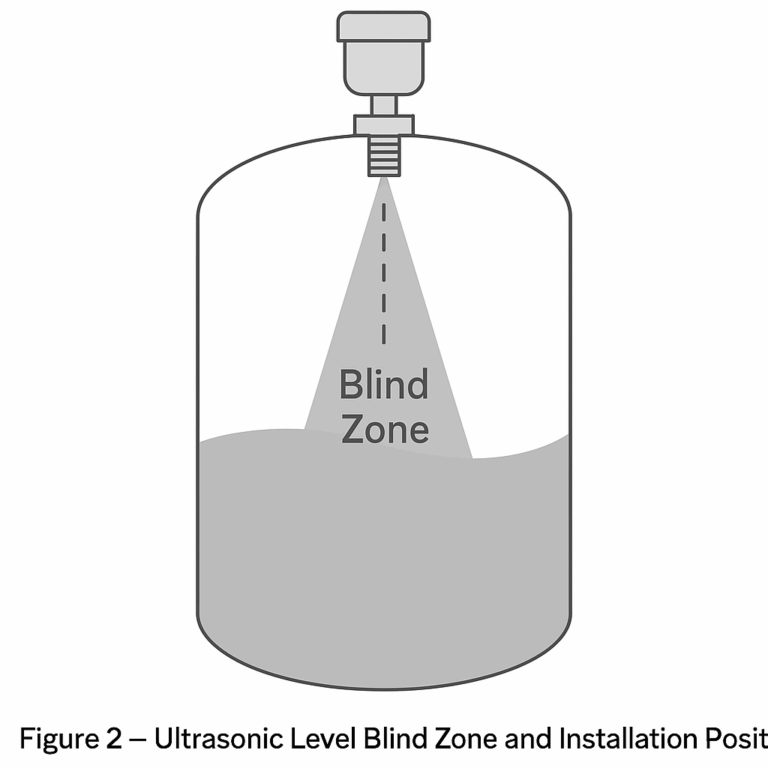

2. Ultrasonic Level Meter
2.1 Installation Problems
Sensitive to vapors, foam, or volatile gases → signal attenuation.
Strong level fluctuation in blind zone → distorted readings.
Close to tank walls → echo interference.
2.2 Recommendations
Probe must face directly downwards, avoid tilt.
Mount higher than blind zone range.
For steam/condensation → select models with temperature compensation and anti-condensation design.

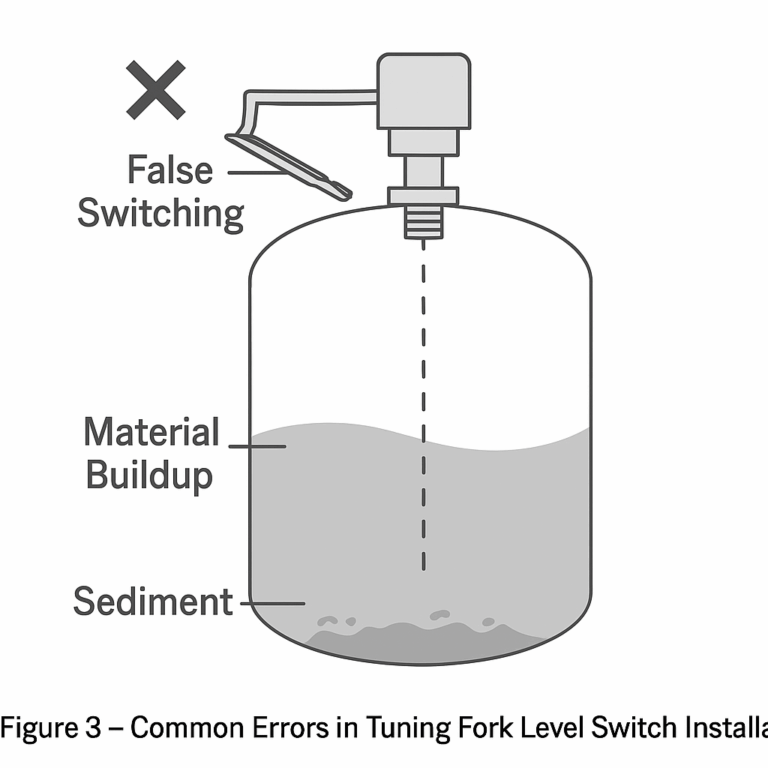

3. Tuning Fork Level Switch
3.1 Installation Problems
Close to inlet → false switching.
High-viscosity media → material buildup and false alarms.
Deep horizontal insertion → sediment accumulation on fork.
3.2 Recommendations
Avoid areas with direct material impact.
Use anti-buildup fork design for viscous media.
Prefer vertical installation for natural self-cleaning.

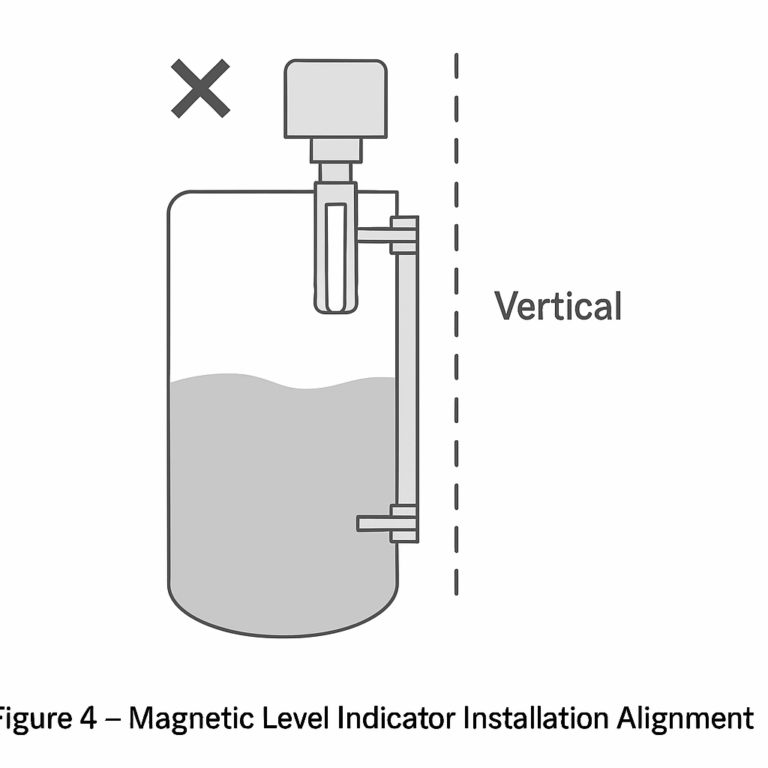

4. Magnetic Level Indicator
4.1 Installation Problems
Not perfectly vertical → float movement restricted, false indication.
Excessive welding stress → guide tube deformation, float stuck.
Magnetic impurities in medium → float blockage.
4.2 Recommendations
Ensure vertical alignment and calibration before welding.
Clean guide tube periodically to remove deposits or magnetic particles.
Consider thermal expansion compensation for extreme temperatures.

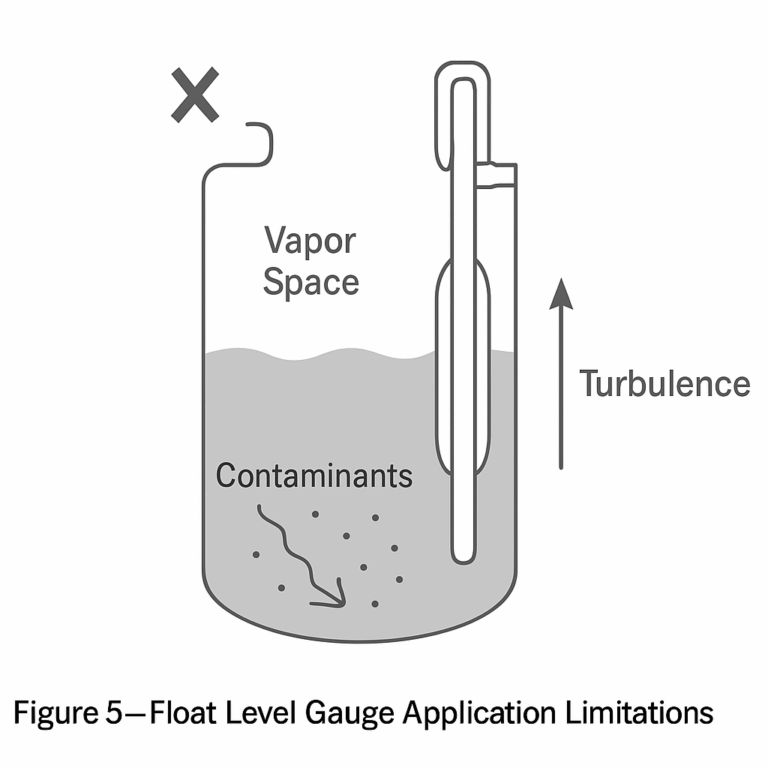

5. Float Level Gauge
5.1 Installation Problems
High-viscosity or contaminated media → float jamming.
Strong turbulence → distorted float motion.
Long-term use → float leakage and failure.
5.2 Recommendations
Use in clean liquid applications, avoid viscous fluids.
Install away from agitators and inlet flow.
Regularly inspect float seal integrity.
6. Comparative Table
Table 1 — Typical Installation Issues and Mitigation Measures
| Instrument Type | Common Problems | Recommended Solutions |
|---|---|---|
| Radar Level Transmitter | Wall/agitator interference | Install vertically, avoid obstacles, use horn |
| Ultrasonic Level Meter | Steam/foam attenuation | Mount above blind zone, select anti-condense |
| Tuning Fork Switch | False switching, buildup | Anti-buildup design, vertical installation |
| Magnetic Level Indicator | Float stuck, deformation | Ensure vertical alignment, periodic cleaning |
| Float Level Gauge | Jamming, leakage | Use in clean media, regular seal inspection |
7. Conclusion
Level measurement is not only determined by instrument technology but also by installation practices and process conditions (temperature, pressure, medium properties, tank geometry). A well-chosen installation site and correct method significantly reduce false signals, malfunctions, and failures, ensuring stable and reliable performance.
Engineers should carefully evaluate each case during selection and installation, and always follow manufacturer guidelines to guarantee safe and long-term operation.
