In the field of flow measurement and process instrumentation, three terms frequently appear: Reynolds number, laminar flow, and turbulent flow. These are not just academic concepts—they are crucial for instrument selection, pipeline design, and process optimization.
🔢 What Is Reynolds Number (Re)?

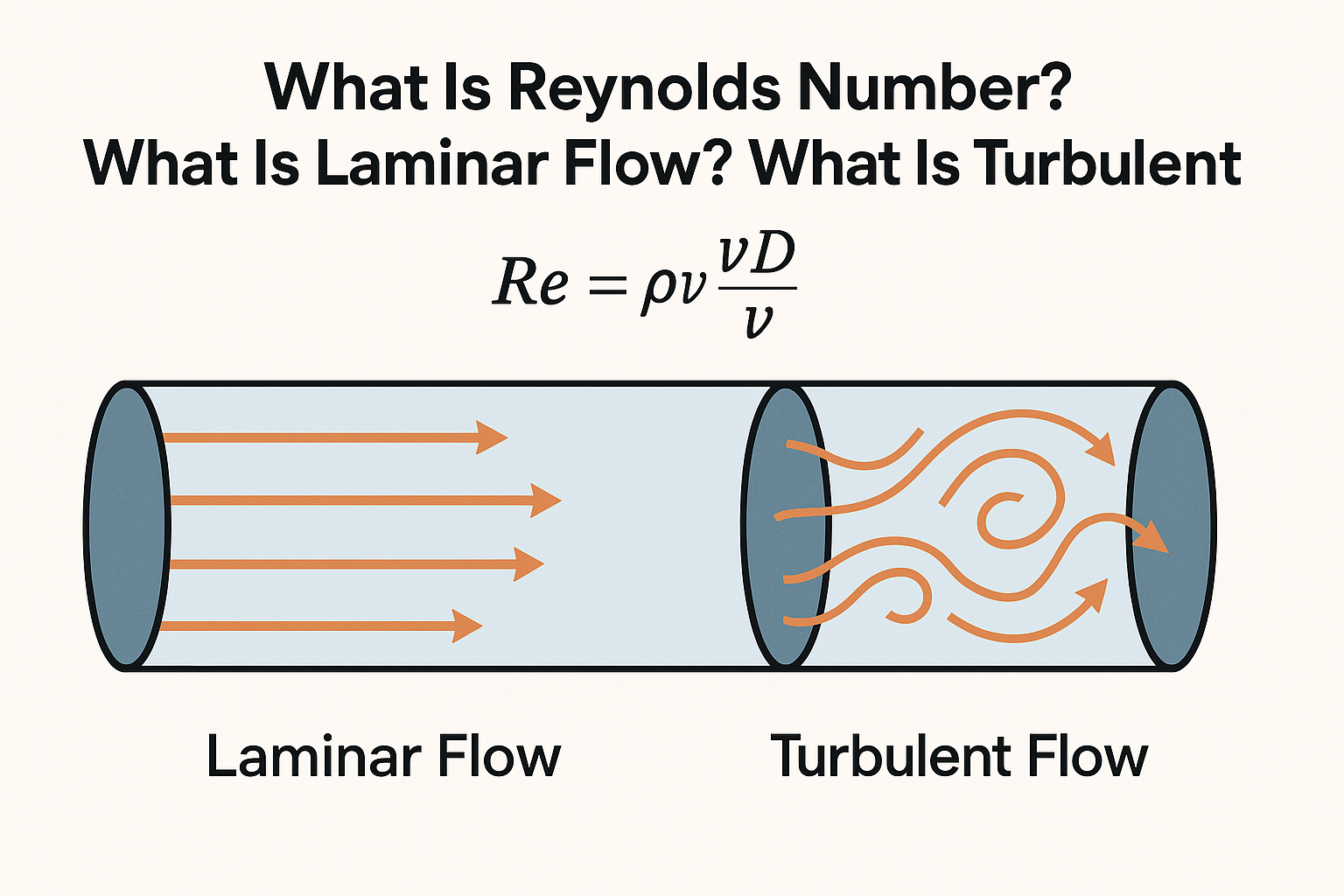

The Reynolds number (Re) is a dimensionless value used to predict the flow regime in a pipe or channel. It helps determine whether the flow will be smooth (laminar) or chaotic (turbulent).
Where:
ρ = Fluid density (kg/m³)
v = Flow velocity (m/s)
D = Pipe inner diameter (m)
μ = Dynamic viscosity (Pa·s)
ν = Kinematic viscosity (m²/s)
📌 Typical flow regimes by Reynolds number:
| Reynolds Number Range | Flow Regime |
|---|---|
| Re < 2,000 | Laminar Flow |
| Re > 4,000 | Turbulent Flow |
| 2,000 ≤ Re ≤ 4,000 | Transitional Flow (Unstable) |
🌊 What Is Laminar Flow?
Laminar flow is a smooth, orderly flow pattern where fluid particles move in parallel layers with minimal disruption between them. It typically occurs at low velocities and low Reynolds numbers.
🔍 Characteristics:
Streamlines are straight and parallel
Minimal mixing between layers
Low friction loss
Common in small-diameter tubes, viscous fluids, or low-flow conditions
✅ Typical Applications:
Syringe pumps in medical dosing
Microfluidics and laboratory analysis
Precision low-flow metering
🌪️ What Is Turbulent Flow?
Turbulent flow is chaotic and irregular. Fluid particles move in a random, swirling motion, causing rapid mixing and significant energy dissipation.
🔍 Characteristics:
Unpredictable velocity and pressure fluctuations
High energy loss due to friction
Enhances heat and mass transfer
Common in high-speed or large-pipe systems
✅ Typical Applications:
Steam pipelines
Cooling water circuits in power plants
Chemical processing systems with large volumes
⚙️ Flow Meters and Reynolds Number: Why It Matters
Different flow meters have different sensitivities to the flow regime:
| Flow Meter Type | Sensitive to Flow Regime? | Recommended Flow Type |
|---|---|---|
| Orifice Plate | Highly sensitive | Turbulent Flow |
| Electromagnetic Flowmeter | Less sensitive | Laminar or Turbulent |
| Vortex Flowmeter | Needs high Re (≥10,000) | Turbulent Flow |
| Ultrasonic Flowmeter | Moderately sensitive | Turbulent Preferred |
| Thermal Mass Flowmeter | Suitable for low Re | Laminar Flow |
📌 Conclusion
Understanding Reynolds number and flow regimes is essential for accurate measurement, proper instrument selection, and safe, efficient process design. Whether you’re sizing a flowmeter or troubleshooting a system, knowing whether your flow is laminar or turbulent can make all the difference.
👉 Bookmark this glossary entry and stay tuned for more from our Instrumentation Glossary Series.
Need help with flowmeter selection for your application? Contact our technical team at Dalian Zero Instrument Technology Co., LTD China, and we’ll assist you in making the right choice.
